Spank Spike Race 33 Rear Wheel

Product image 1
1 / 3

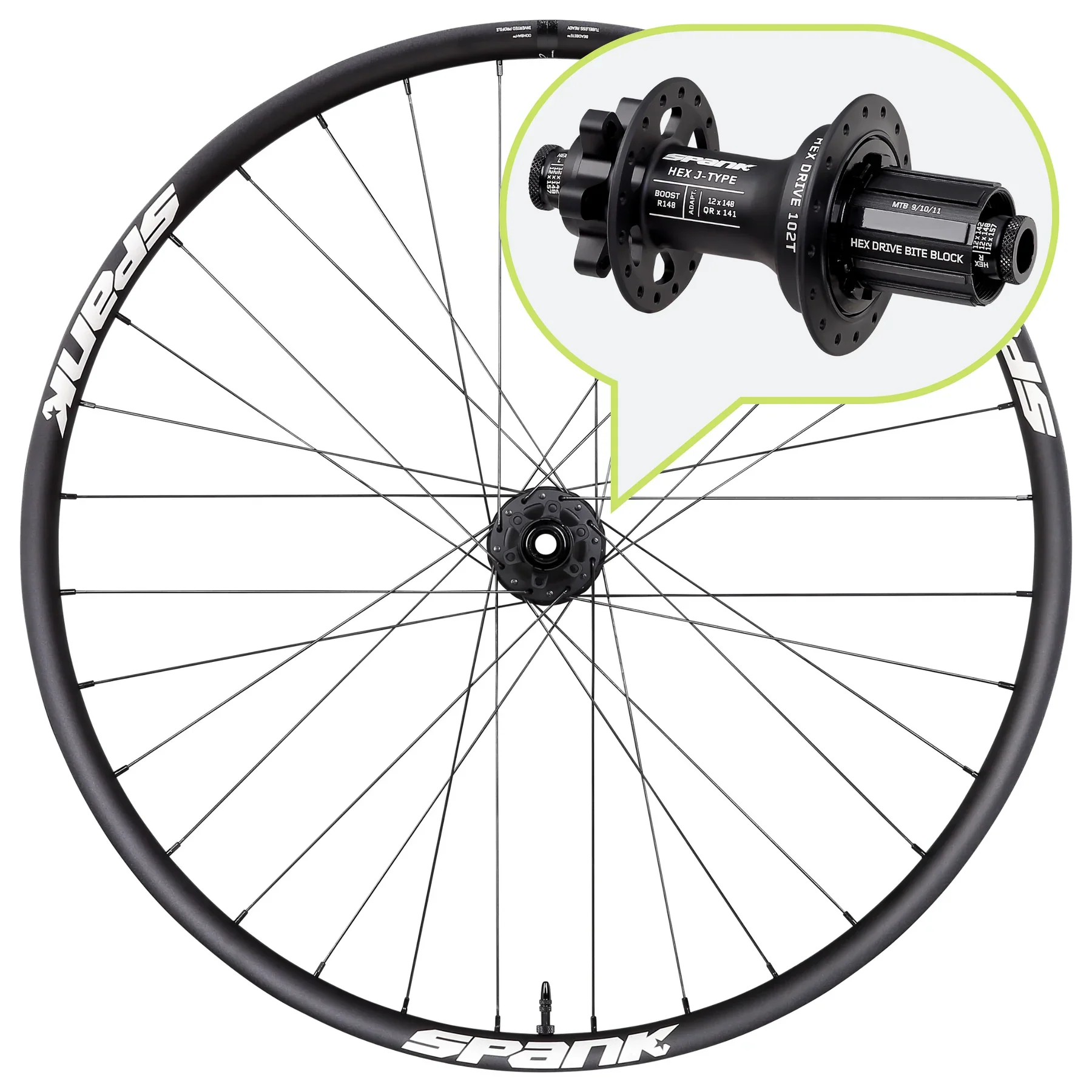

Spank Spike Race 33 Rear Wheel

  • A high-performance alloy rim designed for freeride, enduro and downhill race use
  • Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
  • 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
  • The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
  • Shotpeen finish to increase fatigue life and make it more durable





    FRONT WHEELS TO PAIR WITH:



    SPIKE RACE 33





    CLASSIFICATION & INTENDED USE:  ASTM 5



    ALL MOUNTAIN
    		 TRAIL
    		 ENDURO
    		 FREERIDE

    ✔

    ✔

    -

    ✔
    DOWNHILL GRAVEL XC E-BIKE

    ✔     		- - *



     * Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline.  (See Hex Drive Service Parts)




    HUMAN FACTOR



    SPANK's recommendations for what body type and ride style this product is suited to.



    BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
    Heavy Impact

    ✔

    ✔

    ✔

    Medium Impact

    ✔

    ✔

    ✔
    Light impact

    ✔

    ✔

    ✔



    RIM SPECIFICATIONS



    HOLE COUNT:
    		 32
    INNER WIDTH (mm):
    		 28

    OUTER WIDTH (mm):
    		 33
    PROFILE HEIGHT:
    		 22
    TYRE FIT
    		 1.9" to 2.5"



    BUILD SPECIFICATIONS



    BUILD:
    		 Handbuilt
    HUB: SPANK HEX J-TYPE

    SPOKES:
    		 J-Hook, tripple butted 2.2/1.8/2.0
    NIPPLES:
    		 Brass external
    LACING:
    		 3 cross lacing
    VALVE: F/V Presta
    TUBELESS: Tubeless taped & valved



    HUB SPECIFICATIONS:



    ENGAGEMENT:

    HEX DRIVE 102T / 3.5° / 6 Pawl
    HOLE COUNT:

    32H J-Hook
    DISC MOUNT:

    6-bolt
    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy freehub body





    VARIANT SPECS



    (Available factory standard in XD and Shimano HG.  Microspline freehubs available).




    		 HUB HUB SPACING BOOST FREEHUB HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
    26"

    HEX J TYPE     		12x142 - HG 32H 12x135 997g 529++ 559x28 R-255 L-258

    HEX J TYPE

    12x142     		- XD 32H 12x135 989g

    529++

    559x28

    R-255

    L-258

    HEX J TYPE     		12x150 - HG 32H 12x157 1008g

    529++

    559x28

    R-255

    L-258

    HEX J TYPE     		12x150 - XD 32H 12x157 1000g

    529++

    559x28

    R-255

    L-258
    S/S BOLT ON 10x135 - 11T 32H - 1124g

    529++

    559x28

    R-255

    L-258
    27.5"

    HEX J TYPE

    12x142     		- HG

    32H     		12x135 1038g 554++ 584x28 R-266 L-269

    HEX J TYPE

    12x142     		- XD

    32H

    12x135     		1030g

    554++

    584x28

    R-266

    L-269

    HEX J TYPE     		12x150 - HG

    32H     		12x157 1049g

    554++

    584x28

    R-266

    L-269

    HEX J TYPE

    12x150     		- XD

    32H

    12x157     		1041g

    554++

    584x28

    R-266

    L-269

    HEX J TYPE     		12x148 BOOST HG

    32H     		- 1044g

    554++

    584x28

    R-266

    L-269

    HEX J TYPE     		12x148 BOOST XD

    32H     		- 1036g

    554++

    584x28

    R-266

    L-269
    29"

    HEX J TYPE     		12x150 - HG

    32H     		12x157 1086g 591++ 622x28 R-285 L-288

    HEX J TYPE

    12x150     		- XD

    32H     		12x157 1078g

    591++

    622x28

    R-285

    L-288

    HEX J TYPE

    12x148

    BOOST     		HG

    32H     		- 1081g

    591++

    622x28

    R-285

    L-288

    HEX J TYPE

    12x148

    BOOST     		XD

    32H     		- 1073g

    591++

    622x28

    R-285

    L-288



    Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.


    ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS



    Boost R148:

    HEX Rear Hub QRx135/141 Adapter

    R150/157:

    N/A

    R135/142:

    HEX Rear Hub QRx135/141 Adapter


    HEX Rear Hub 10x135 Adapter



    SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS



    HEX Rear HG/HGR Hub Replacement Bearing Kit

    HEX Rear XD/XDR Hub Replacement Bearing Kit

    HEX Boost Rear Hub Alloy Axle Shaft

    HEX Rear Hub 135/142mm Alloy Axle Shaft

    HEX Rear Hub 150/157mm Alloy Axle Shaft

    HEX Rear Hub HG Alloy Anti-Bite Freehub

     HEX Rear Hub XD Alloy Freehub
